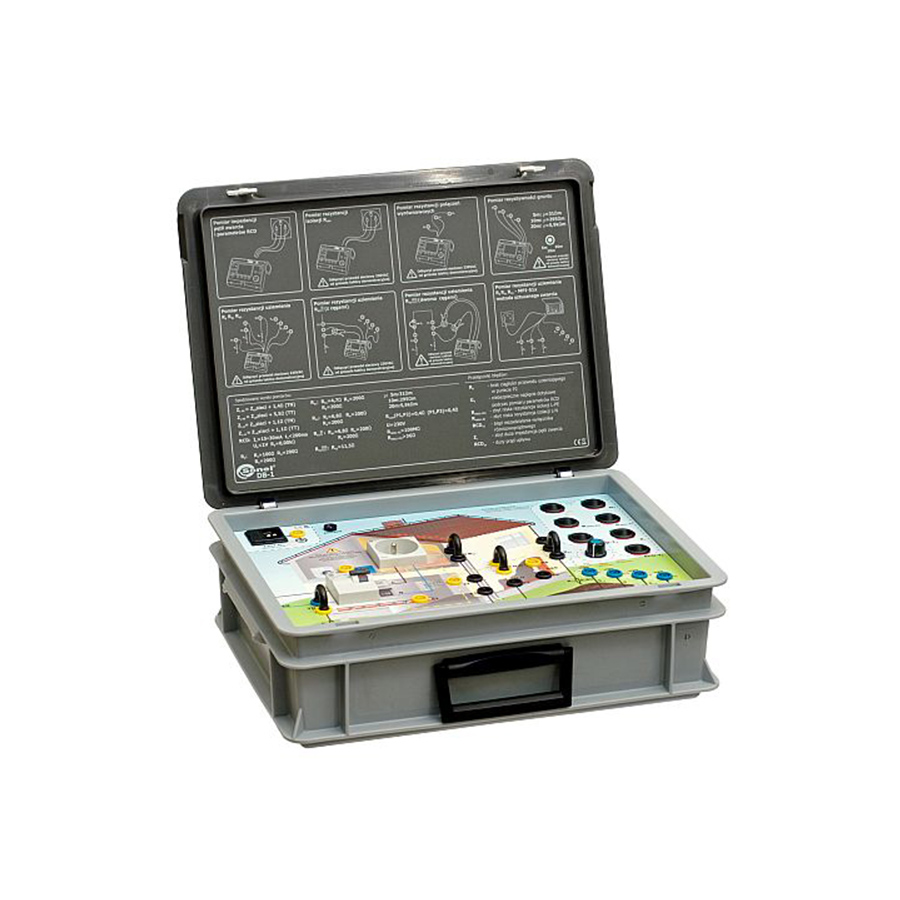

SONEL-DB-1 Demonstration Board
The DB-1 board makes it possible to demonstrate the method
of performing the following tests:
- fault loop impedance for assessment of the automatic power cutoff condition,
- RCD parameters,
- earthing resistance,
- soil resistivity,
- continuity test of equipotential bonding,
- insulation resistance,
- power network voltage.
It is possible to simulate typical failures and irregularities in the electrical network.
Technical specifications of DB-1 board and features of individual
functions:
- Fault loop impedance:
• measurement of L-N short-circuit with impulse currents up to 25 A and 60 ms,
- measurement of L-PE earth fault loop with impulse currents up to 20 mA.
- RCD parameters (30 mA RCD):
- measurement of RCD trip time,
- measurement of RCD trip current,
- earth resistance measurement,
- touch voltage measurement.
Soil resistivity:
resistivity measurement for three soil types (14 Ωm; 300 Ωm; 6.2 kΩm).
Earthing resistance.
Measurement by method:
• two-lead,
• three-lead,
• four-lead,
• three-lead with clamp,
• double clamp,
• with the use of fault loop meter.
- Continuity of connections:
• measurement of equipotential bonding and connections of accessible parts.
- Insulation resistance:
• measurement of L-N insulation,
• measurement of L-PE insulation,
• measurement of N-PE insulation.
- Voltage measurement:
• voltage measurement in power socket.
- Simulation of irregularities:
• no continuity of earth conductor (RE),
• safe voltage exceeded during RCD measurement (UB),
• leakage current (IErr),
• insufficient L-N insulation resistance (RISO(L-N)),
• insufficient L-PE insulation resistance (RISO(L-PE)),
• excessive fault loop impedance (ZL).
Item Code | WMGBDB1 |
---|---|
Price | ₹126,394 |
Brand | Sonel |
