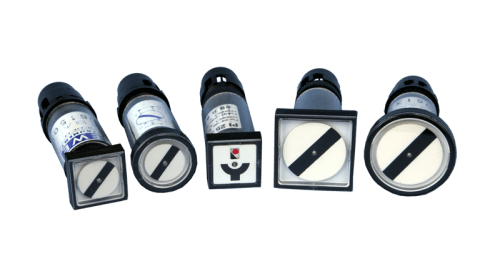

Secure PI25, 25x25 mm square, Bar -2 - 106520-051

Features

• Available in AC and DC variants
• 'Bar', 'angle' and 'disconnector' formats for circuit breakers and isolators
• 'Amber-white' and 'red-green' formats for valves
• Screw terminals for cables up to 1.5 mm²
• Available in a range of sizes: 24x24, 25x25, 36x36, Ø 29 and Ø 39 mm
• Provided with protection cover
• Polycarbonate enclosure (IP 54 rated)
• Wide operating voltage range 24-230 VDC
• Suitable for panel thickness up to 12 mm
• Standards compliance
  • Personal safety EN 61010:1
  • Double isolated to category III, Table D12
  • IEC 51, EN 50081-1, EN 50081-2, EN50082-1, EN50082-1, IEC 473

Benefits

• High accuracy and reliability through use of moving-magnet system
• Low power consumption
• No need for external setting of 'zero' position
• Easy to fit, using sleeve and nut
