LKZ-720 Cable Detector
Locate wires and cables with the LKZ-720 Wire Tracer

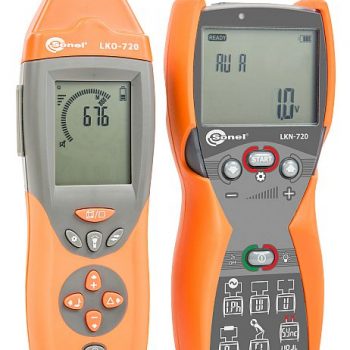

The Sonel LKZ-720 cable and wire locator is a device consisting of the LKN-720 transmitter and the LKO-720 receiver. This instrument is dedicated to finding cables and other underground infrastructures. The LKZ-720 allows the location of both metallic objects (cables) and non-conductive objects (PVC pipes, concrete, etc.). The locator is mainly dedicated to use in the energy and installation industry, among others.
Main features
- detection of wires and cables (live or not)
- tracing underground cables
- tracing conductive water and heating pipelines
- flow and accurate locating the object
- phase detection mode
- operation in wide range of rated voltage, up to 500 V RMS
- five modes of wire tracer operation - voltage, current, current-voltage, power and clamp
- additional accessories enable precise localization - such as contact or non-contact probes and measurement clamp
...and much more
- the function 3D in the receiver - detecting the direction of current
- receiver operation with four transmitters at the same time to locate interruptions or distinguish wires
- a LED bright torch
- headphone socket in receiver
- screens backlight for work in dark
- transmission battery status and settings of the transmitter to the receiver
- measurement of voltage at the object to 500 V RMS
- three levels of transmitter amplification
- automatic or manual selection of transmitter operation modes
- software upgrade via USB
Application
Detection and tracing cables in ceilings, walls and floors
In response to the needs of customers, the LKO-720 has a specially designed 3D antenna that raises the precision of the wire tracing. Determine direction of wires in concrete up to 5 cm will not be a problem now.
Locating power points and switches in buildings
pulse generated by a LKN-720 transmitter with a specific frequency allows to locate and identify sockets and switches in energized and de-energized circuits.
Identification of fuses on the distribution board
Thanks to the precise sensor in LKO-720 and additional contact and non-contact probes, identify of breakers and fuses now will be easily and time-saving.
Possibility to tracing in no access conductors
LKO-720 with C-8 clamp used in the current mode or in other mode forcing current, allows to uniquely identify wire or cable with a forced current signal. Non-contact detection of live cables LKO-720 allows to precisely detect energized wires in air and concrete without additional probes.
Additional areas of use
- detection of breaks in cables and wires
- locating short circuits between leads
- tracing shielded cables
- tracing cables in metal ducts
- tracing underground cables
- tracing conductive water and heating pipelines
| Parameter | Description |
|---|---|
| Insulation type acc. to EN 61010-1 | double |
| Measurement category acc. to EN 61010-1 | III 600 V |
| Ingress protection rating acc. to EN 60529 | IP67 |
| Power supply | 4 x AA alkaline batteries or 4 x Ni-MH rechargeable batteries |
| Maximum operating voltage | 500 V RMS |
| Operating temperature | -10°C...+50°C | 14°F...122° |
| Parameter | Description |
|---|---|
| Ingress protection rating acc. to EN 60529 | IP40 |
| Maximum depth of the analysed object | (“I” mode) 2 m | 6.6 ft |
| Maximum range of contactless neon probe | |
| in air | 50 cm | 1.6 ft |
| in concrete | 5 cm | 0.16 ft |
| Power supply | 9 V 6LR61 alkaline battery |
| Operating temperature | -10°C...+50°C | 14°F...122°F |
| Item Code | WMGBLKZ720 |
|---|---|
| Brand | Sonel |
